VANXON / CHAINWHEELS

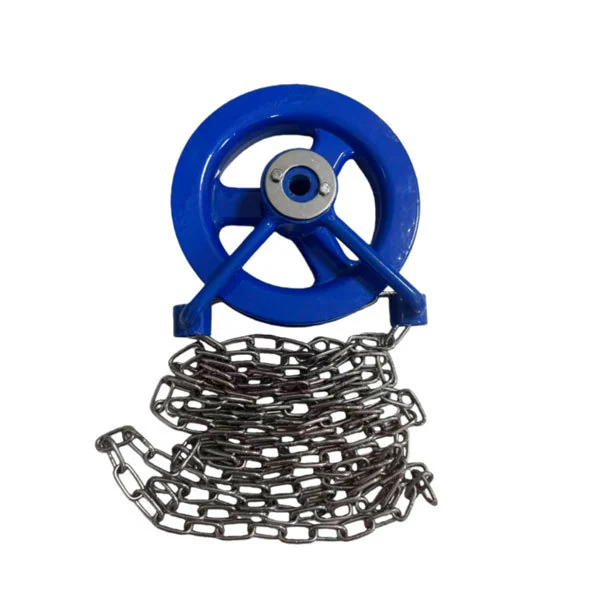

chain wheel valve actuators
A chain wheel component for manual valve operation. Confirm mounting connection, chain specification and operating height for your installation.
TECHNICAL DETAILS
The details behind the fit.
Review the model, material and connection before confirming your component.
| Model | Spec | Ratio | d | b | t | D1 | 4 - M | A | B | D | E | H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3D - 15 | DN50 - 80/2" - 3" | 24:1 | 12.7 | 3 | 14.1 | 70 | 4 - M8 | 180 | 132 | 200 | 45 | 290 |
| 3D - 15 | DN100/4" | 24:1 | 15.9 | 5 | 18.2 | 70 | 4 - M8 | 180 | 132 | 200 | 45 | 290 |
| 3D - 50 | DN125 - 150/5" - 6" | 30:1 | 19.05 | 5 | 21.35 | 102 | 4 - M10 | 270 | 225 | 290 | 63 | 35 |
| 3D - 50 | DN200/8" | 30:1 | 22.2 | 5 | 24.5 | 102 | 4 - M10 | 270 | 225 | 290 | 63 | 35 |
| 3D - 120 | DN250/10" | 50:1 | 28.6 | 8 | 31.9 | 125 | 4 - M12 | 270 | 215 | 290 | 81 | 40.5 |
| 3D - 120 | DN300/12" | 50:1 | 31.8 | 8 | 35.1 | 125 | 4 - M12 | 270 | 215 | 290 | 81 | 40.5 |
| 3D - 120 | DN350/14" | 50:1 | 31.8 | 8 | 35.1 | 125 | 4 - M12 | 270 | 215 | 290 | 81 | 40.5 |
| 3D - 250 | DN400/16" | 80:1 | 33.3 | 10 | 36.6 | 165 | 4 - M20 | 380 | 270 | 410 | 120 | 58.5 |
| 3D - 250 | DN450/18" | 80:1 | 38.1 | 10 | 41.4 | 165 | 4 - M20 | 380 | 270 | 410 | 120 | 58.5 |
| Model | Spec | Ratio | d | b | t | D1 | n - M | A | B | C | D | E | H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3D - 30/300 | DN500/20" | 352:1 | 41.3 | 10 | 47.9 | 165 | 4 - M20 | 380 | 268 | 50 | 410 | 185 | 120 |
| 3D - 30/400 | DN600/24" | 416:1 | 50.8 | 16 | 59.4 | 165 | 4 - M20 | 380 | 283 | 50 | 410 | 185 | 126 |
| 3D - 60/800 | DN700/28" | 754:1 | 55 | 16 | 63.4 | 254 | 8 - M16 | 380 | 313 | 50 | 410 | 218 | 144 |
| 3D - 60/800 | DN800/32" | 754:1 | 55 | 16 | 63.4 | 254 | 8 - M16 | 380 | 313 | 50 | 410 | 218 | 144 |
Published model data is provided for reference. Confirm dimensions, units, material and operating limits against your approved drawing before ordering.
