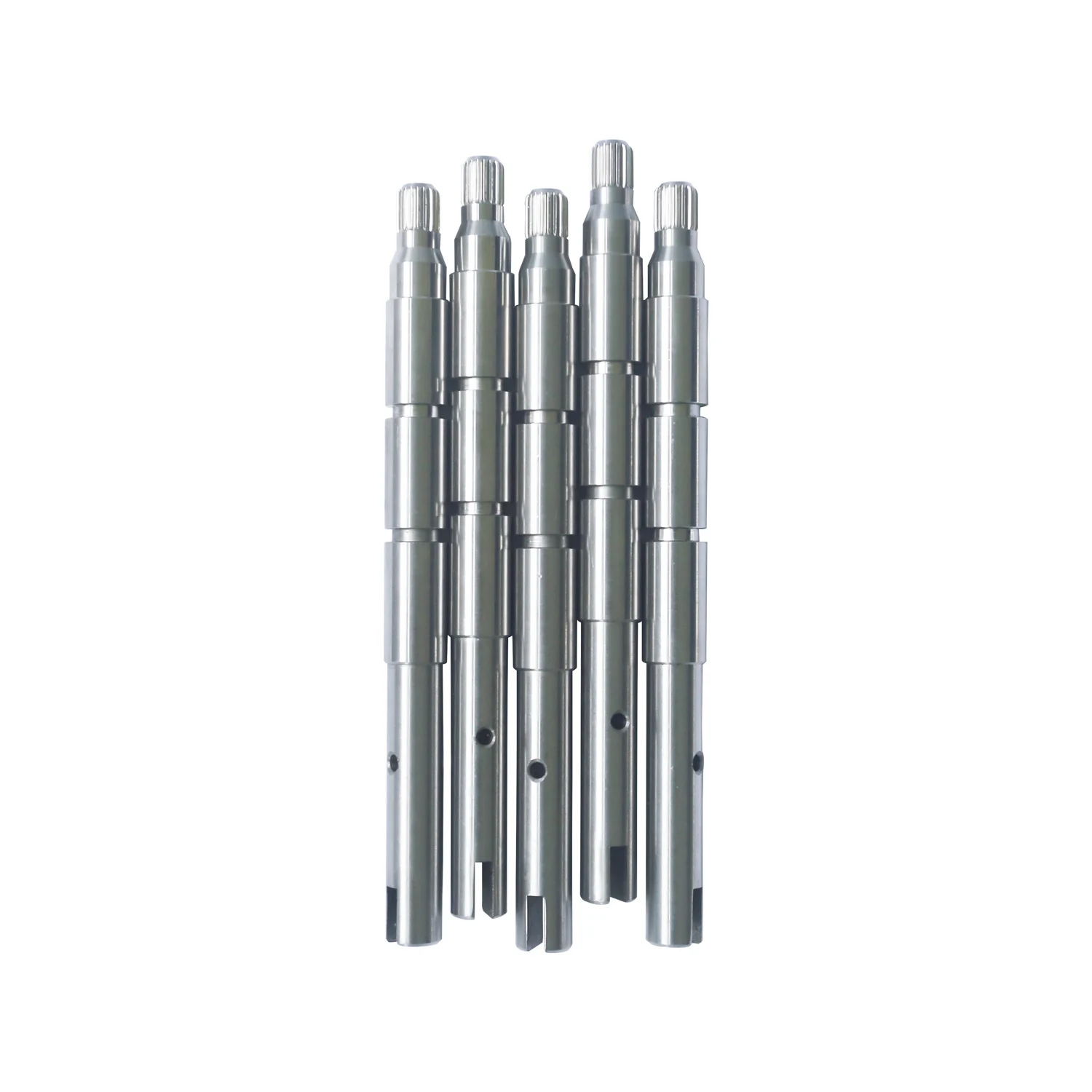

Valve Stems & Shafts
VANXON manufactures valve stems and shafts for gate, ball and butterfly valve assemblies. Explore threaded, keyed and splined connections, with material, dimensions and surface requirements reviewed against your drawing.
TECHNICAL DETAILS
Find the valve stem for your assembly
Review the model, material and connection before confirming your component.
| Product families | Ball valve, gate valve, butterfly valve and check valve stems |
|---|---|
| Materials | Stainless and alloy steels, selected to your drawing |
| Connection | Threaded, keyed, splined or custom machined |
| Customization | Geometry, material and surface finish by drawing or sample |
Published model data is provided for reference. Confirm dimensions, units, material and operating limits against your approved drawing before ordering.
Gate valve stems
Start with the stainless steel gate valve stem or solid forged gate valve stem. Specify thread form, pitch and direction, stem length and the connections to the stem nut and gate.
Ball valve stems
Compare the stainless steel ball valve stem and solid forged ball valve stem. Define drive-end geometry, ball connection, retention features and material condition for your quarter-turn assembly.
Butterfly valve shafts
Choose the connection your assembly requires: a keyed upper pivot shaft or a splined upper shaft. Identify upper and lower shaft positions, mating dimensions and functional surfaces on the drawing.
Custom valve stem machining
Prepare a dimensioned drawing or reference sample, the specified material grade, sample and batch quantities, and inspection requirements. Our valve stem drawing checklist and gate valve stem inspection checklist help organize the information for an OEM quotation.
MANUFACTURING
A closer look at the factory.
Machining and assembly at our workshops in Pingyin, Jinan.
COMPANY DOCUMENTS
Qualifications, clearly presented.
Archived copy from our company website. The ISO 9001 certificate shown is dated valid until 24 September 2026; please request the latest copy for supplier approval.
PRODUCTION & STOCK
From individual parts to batches.
A view of our component production and packing. These are shared factory photographs; availability for your selected model is confirmed with the quotation.
EXPORT PREPARATION
Packed for the next journey.
Protective packing, container loading and dispatch from our factory.
CUSTOMER VISITS
Good connections begin in person.
Technical discussions, production reviews and visits to the workshop.
