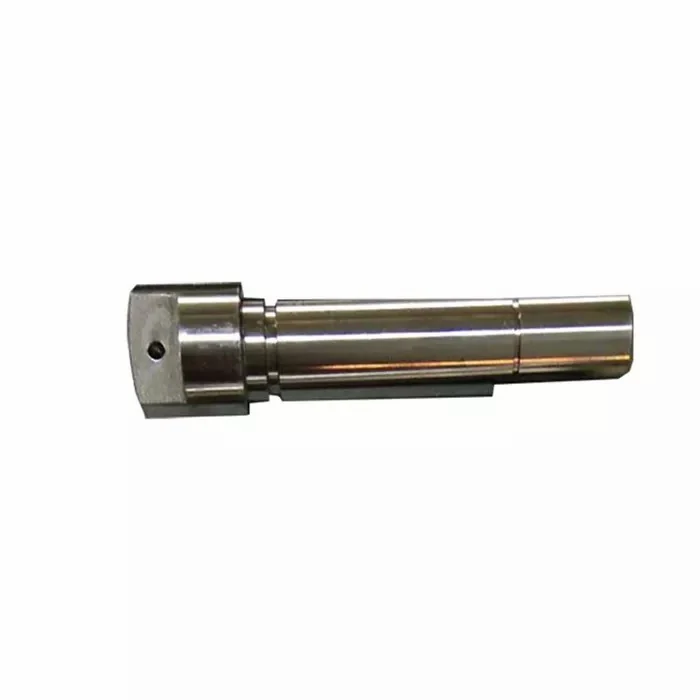

Stainless Steel Ball Valve Stem
A stainless steel ball valve stem for a quarter-turn drive connection. Length, drive-end geometry and connection details can be reviewed against your drawing or sample for OEM machining.
TECHNICAL DETAILS
Ball valve stem connection & material requirements
Review the model, material and connection before confirming your component.
| Component | Stainless Steel Ball Valve Stem |
|---|---|
| Manufacture | To the selected reference, drawing or sample |
| Material & finish | Confirmed for the requested component |
| Dimensions | Please provide a dimensioned drawing |
| Order requirements | Quantity, destination and inspection requirements |
Published model data is provided for reference. Confirm dimensions, units, material and operating limits against your approved drawing before ordering.
Match the ball and drive connections
Show both ends of the stem, including the drive profile, shoulders, retention features and the connection to the ball. Identify the mating-part dimensions and required orientation so the finished stem can be checked against the assembly.
Select the stainless steel grade
The product is listed in stainless steel. Include the exact grade and condition required for your application, together with the medium and working environment. Grade availability and any surface treatment are confirmed during the quotation review.
Define the finished part
Specify overall length, stepped diameters, functional surfaces and tolerances. Send a drawing revision and state which dimensions must be inspected for sample approval. Pressure rating and sealing performance depend on the complete valve design.
Prepare a sample or batch inquiry
Include sample and production quantities, required documents and delivery destination. Use our valve stem drawing checklist to prepare the request. For a forged alternative, see the solid forged ball valve stem.
