VANXON / VALVE STEMS

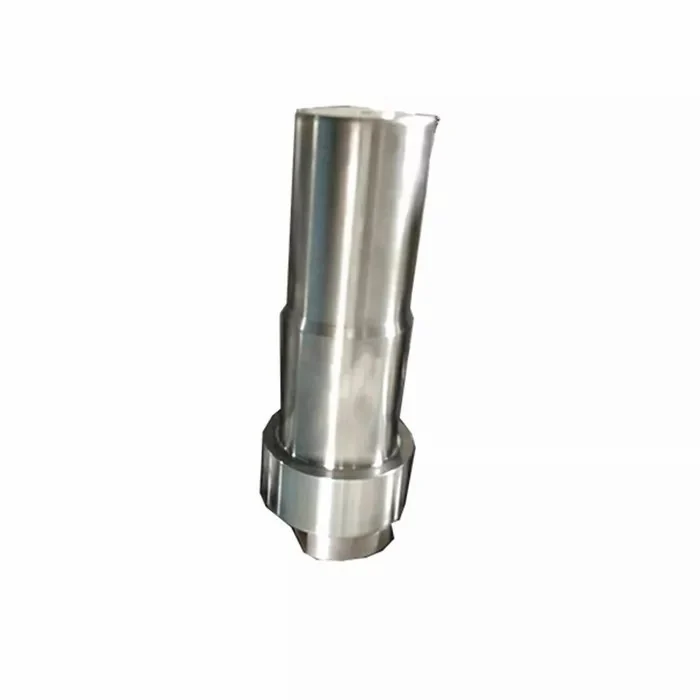

Solid Forged Ball Valve Stem
A solid forged ball valve stem for a drawing-defined drive connection. Share the material specification, finished dimensions and mating-part details so VANXON can review the forging and machining requirements for your order.
TECHNICAL DETAILS
Forged stem requirements for your assembly
Review the model, material and connection before confirming your component.
| Component | Solid Forged Ball Valve Stem |
|---|---|
| Manufacture | To the selected reference, drawing or sample |
| Material & finish | Confirmed for the requested component |
| Dimensions | Please provide a dimensioned drawing |
| Order requirements | Quantity, destination and inspection requirements |
Published model data is provided for reference. Confirm dimensions, units, material and operating limits against your approved drawing before ordering.
Define the finished connection
Show the drive end, shoulders, flange or retention features and the connection to the ball. Mark the dimensions that control assembly fit. The forging reference and finished machining drawing should describe the same part revision.
Specify material and treatment
The original listing offers duplex stainless steel as an option. State the exact grade, heat-treatment condition and surface requirements for review. Material availability and the proposed process are confirmed with the quotation.
Set acceptance criteria
Identify required material records, dimensional reports and any additional testing before placing the order. Pressure rating and suitability of the complete ball valve cannot be determined from the stem photograph or product name.
Prepare the OEM request
Include a dimensioned drawing, sample quantity, production quantity and delivery destination. Our custom valve stem drawing requirements explain how to prepare the information needed for a manufacturing review.
