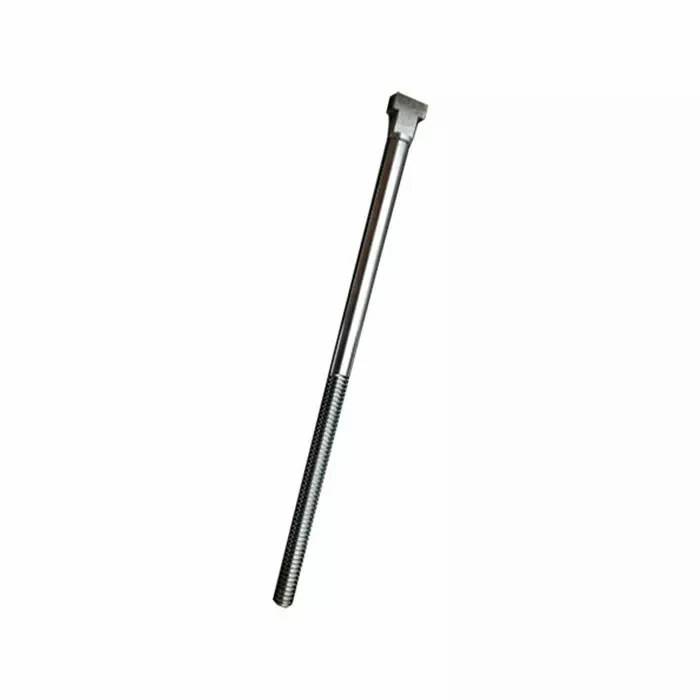

Solid Forged Gate Valve Stem
A solid forged gate valve stem with machining defined by the finished-part drawing. Confirm the thread, gate connection, material condition and critical dimensions before approving a sample or production batch.
TECHNICAL DETAILS
Forged gate valve stem specifications & drawing review
Review the model, material and connection before confirming your component.
| Model NO. | Stem |
|---|---|
| Surface Treatment | Polishing |
| Material | Stainless Steel |
| Material Specification | 420,431,304,316,45#, 40cr |
| Bale Weight | 1000kg |
| Specifcation | OEM |
| Origin | China |
| Production Capacty | 100,000 Pieces/Year |
| Pressure | Pn10-16 |
|---|---|
| Application | Gate Valve |
| Processing Methods | CNC Machining |
| Size | Customizable |
| Transport Package | Carton,Wooden Box |
| Trademark | Vanxon |
| HS Code | 8515800090 |
| Hardness | HRC18-45(Customizable according to customer requirements) |
|---|---|
| Fluctuation | 0.02mm |
| Roughness | 0.4-3.2 |
| Visual inspection | Smooth and free of burrs |
| Outer diameter tolerance | ±0.002 |
| Roundness | 0.005 |
| Concentricity | 0.01 |
| Chamfer | C0.5 |
Published model data is provided for reference. Confirm dimensions, units, material and operating limits against your approved drawing before ordering.
Define the thread and gate connection
Provide thread form, pitch, direction and threaded length, plus the dimensions of the connection to the gate and stem nut. Mark shoulders and other locating features. Nominal valve size alone is not sufficient to manufacture a matching stem.
Specify forging and machining requirements
Identify the required steel grade, heat-treatment condition and finished dimensions. The listing includes CNC machining and polishing; confirm which operations and surface requirements apply to your part instead of treating every listed option as a single specification.
Agree sample acceptance
Define the critical dimensions, thread checks, surface condition and material documents required for approval. Review the gate valve stem inspection checklist before placing an order. Check legacy table values and incomplete units against the approved drawing.
Compare the correct stem construction
If your requirement is primarily material-led, review the stainless steel gate valve stem. For this forged reference, send the drawing revision, sample quantity, batch quantity and required delivery information.
